Tine Plow

The Tine plow is a durable, practical implement designed with modern agricultural contractors, growers, and farmers in mind. It’s all about soil conservation and getting back into production fast.

Contact an expert Download the brochure

Download

Please enter your details to download the brochure.

    By filling out this form you agree to the terms of our Privacy Policy

    Gallery

    Tine Plow | FarmChief
    TinePlow | FarmChief
    Tine Plow NZ | FarmChief

    Features and Benefits

    A clever (and well-engineered) machine, the tine plow shatters sub-soil pans while working the topsoil.

    It maintains and even improves soil structure and breaks the panning, but does not “boil” the soil, or incorporate the layers, as a traditional ripper would. As well as soil conservation, the tine plow helps get paddocks back into production faster.

    One client credits it with giving him the ability to go straight into a sprayed-off pasture and plant the maize faster, with a quicker, more even, germination, and, most importantly of all, noticeably improved yields.

    While corn, maize, squash and cereal crops see the tine plow put in the most work, it’s also proving more than its worth cultivating and regrassing-down summer/ winter break-feed and sacrifice paddocks.

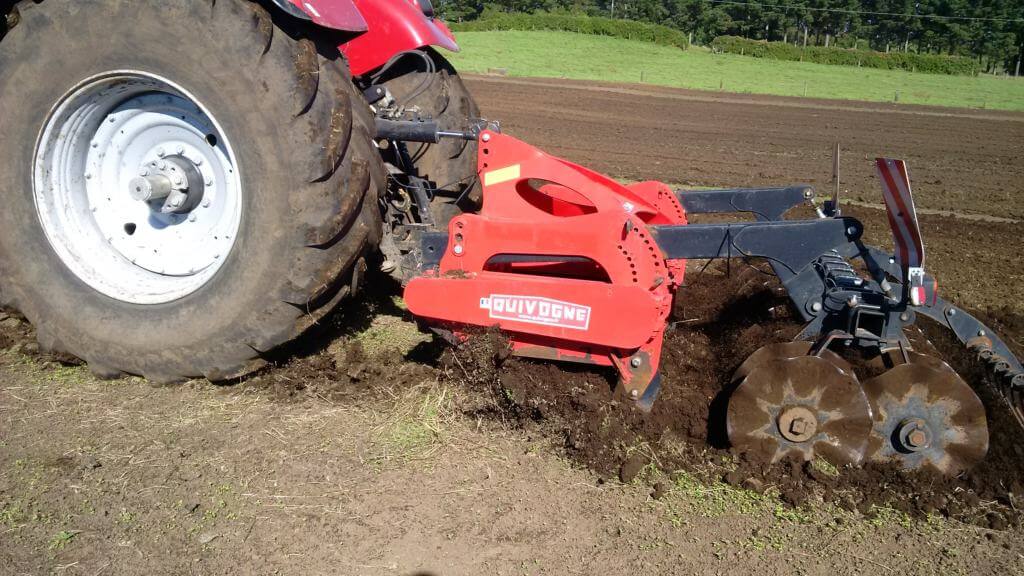

    Curved tines, lift and crack the soil, aerate it and let moisture penetrate. These are followed by a double waved roller, helping avoid soil drying out, and a raking harrow that completes the chopping and mixing of any debris – leaving a smooth, level surface.

    Technical Specifications

    Model

    Working width

    Weight approx

    Working depth

    Tine spacing

    No. of tines

    HP Required

    TP 3000

    3.00m

    1910kg

    500mm - 600mm

    525mm - 710mm

    10 - 12

    160+

    TP 3500

    3.50m

    2229kg

    500mm - 600mm

    525mm - 710mm

    12 - 14

    210+

    TP 4000

    4.00m

    3300kg

    500mm - 600mm

    525mm - 710mm

    12 - 16

    260+

    TP 5000

    5.00m

    3900kg

    500mm - 600mm

    525mm - 710mm

    16 - 20

    300+

    Testimonials

    Stuart's view

    Stuart Briant is a third generation commercial grower, working flat to rolling country in Gisborne. His crops include seed maize, squash, sweet corn, and maize. He says he was convinced it was worth buying when he first saw the implement being demonstrated. Stuart says he especially appreciates the way it helps protect the soil structure, and promotes healthy growth and increased production. “We like the job it’s doing.”

    - Tine Plow

    FarmChief Implement Options

    FarmChief Fixed-Width Power Harrows

    One of the best implements on a farm to optimise seed germination and create and even and fine seed bed for crop or grass establishment.

    FarmChief Fixed-Width Power Harrows | View Now

    FarmChief Rollmax Folding Cultivation Rollers

    Designed to deliver a fine tilth finish while providing an optimal seed-to-soil placement during cultivation, this machine is perfect for any large scale farmer or contractor.

    FarmChief Rollmax Folding Cultivation Rollers | View Now

    Maelstorm Rear Discharge

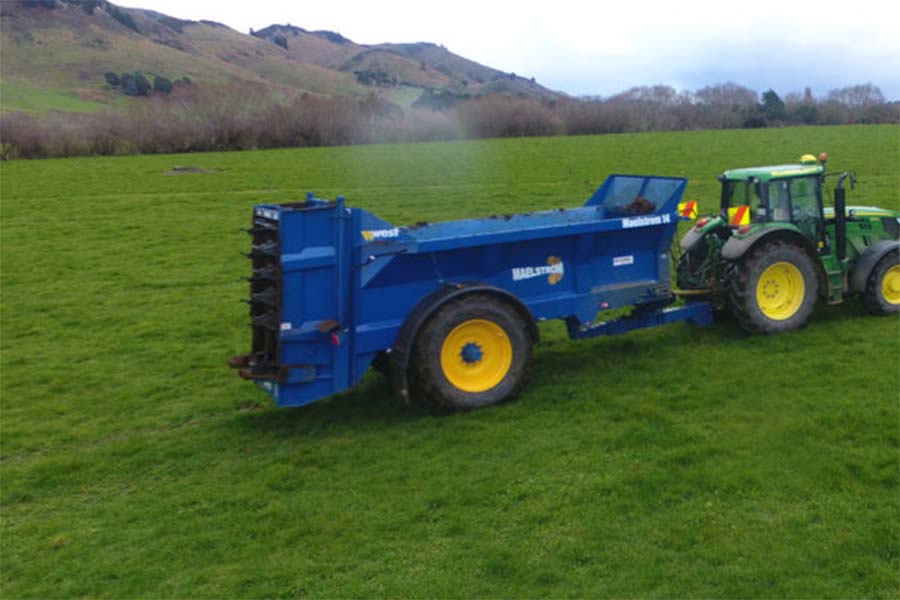

    FarmChief Maelstorm Rear Discharge Spreader
